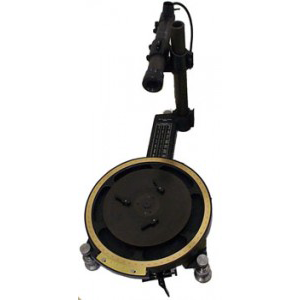

Azimuth Test Fixture

NSN: 4931-00-769-1596
P/N: 7691596

General Description

The Azimuth Test Fixture is designed for checking the azimuth accuracy of various fire control instruments to include backlash error, level travel, and counter/scale accuracy. Some of these instruments include: M137 Panoramic Telescope, M117 Panoramic Telescope, M64/M67 Telescope Mount, M2A2 Aiming Circle, and the M12A7 Panoramic Telescope.

Additional Information

Dimensions 43″ x 27″ x 11″
Weight 192 lb
