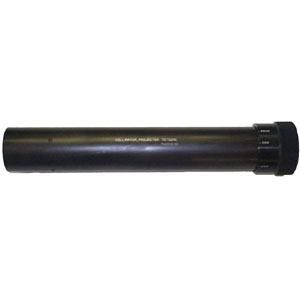

Collimator Projector

NSN: 4931-00-757-3291
P/N: 7573291

General Description

The Collimator Projector is used as a known distance target, allowing long range adjustments of telescopes in short range conditions. It is also used as an image source for aligning optical systems.

The Collimator Projector is used with the Azimuth Test Fixture and various optical alignment fixtures and benches.

Additional Information

Magnification 8.4x
Field of view
Length 14.5 inches
with lamp unit: 21.5 inches
Lamp 110V, 15W
Target Range 50 yards – infinity
