Details
NSN: 1240-01-684-1143
P/N: SLB11200
General Description

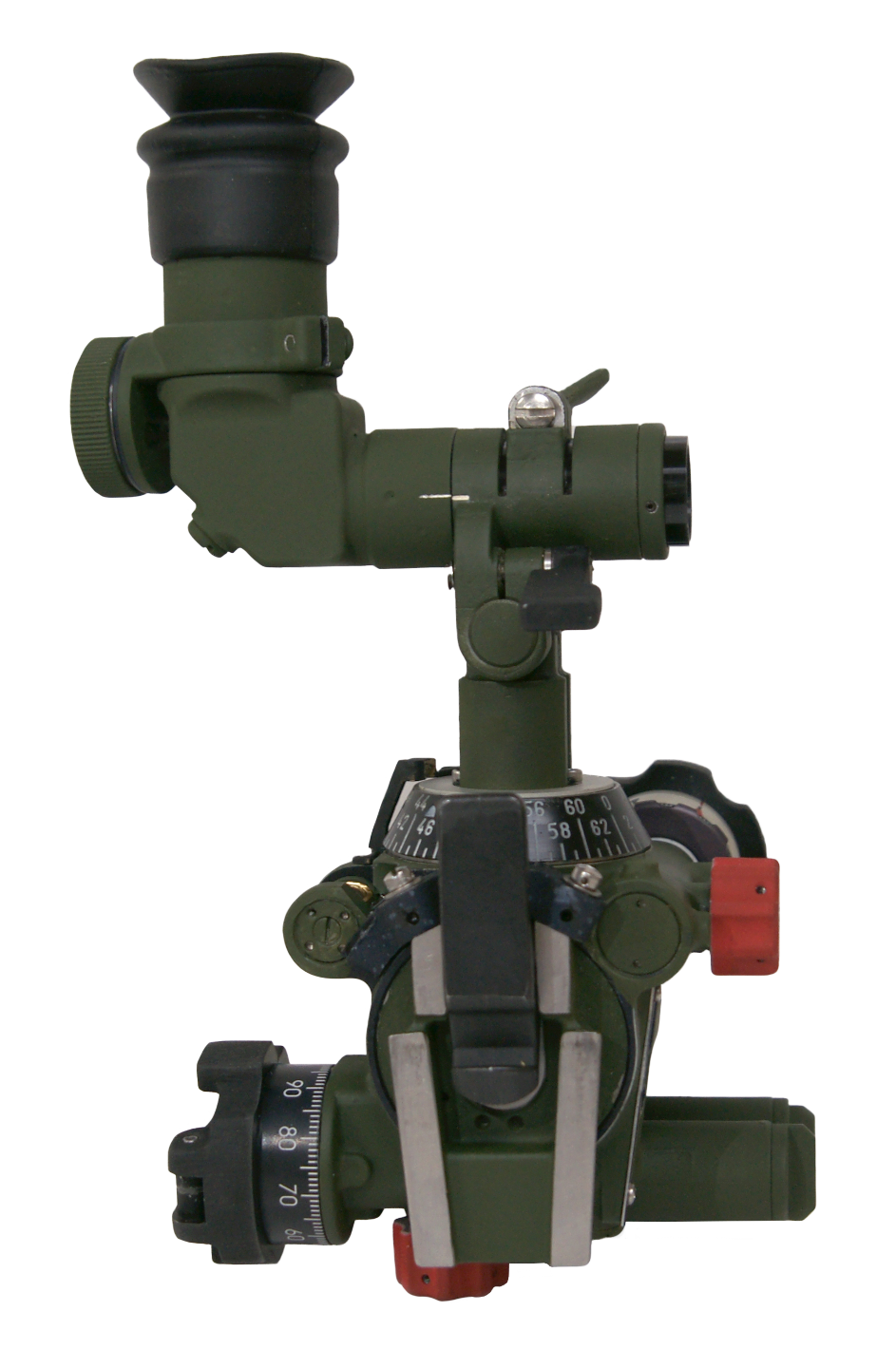

The M67A2 Sight Unit is used to orient a mortar system on a specific elevation and direction of fire. The use of battery powered LEDs to illuminate scales & level vials for night & low-light operations eliminates the need for radioactive tritium and the corresponding personal safety concerns & NRC oversight.
Components
| P/N | |
|---|---|
| M67A2 Mount, Telescope | SLB11203 |
| Telescope, Elbow Assembly | SLB10457 |
Additional Information
| Weight | 2.9 lbs |
|---|---|
| Length | 5 3/8 in |
| Width | 4 3/8 in |
| Height | 8 ½ in |
| Field of view | 10° |
| Magnification | 4.0x nominal, 3.5 effective |
Related Equipment
| P/N | NSN | |
|---|---|---|
| M2A2 Aiming Circle | 11785090 | 6675-01-067-0687 |
| M45 Optical Boresight | 10549221 | 1240-00-152-3512 |
| Handle & Firing Mechanism (60 mm) | 11578985 | 1010-01-043-2050 |
| Range Indicator (60mm) | 9360374 | 5840-01-458-6159 |
| M115 Boresight (60mm) | 11748094 | 1240-01-058-7460 |
